User guide: Soundtrack Player

ℹ️ We are currently testing a new way to connect your player.
This test is only visible to some users, and this page will be updated when the test is complete.

1. Log in to your account.
2. Click  ‘Locations’ and select the zone.

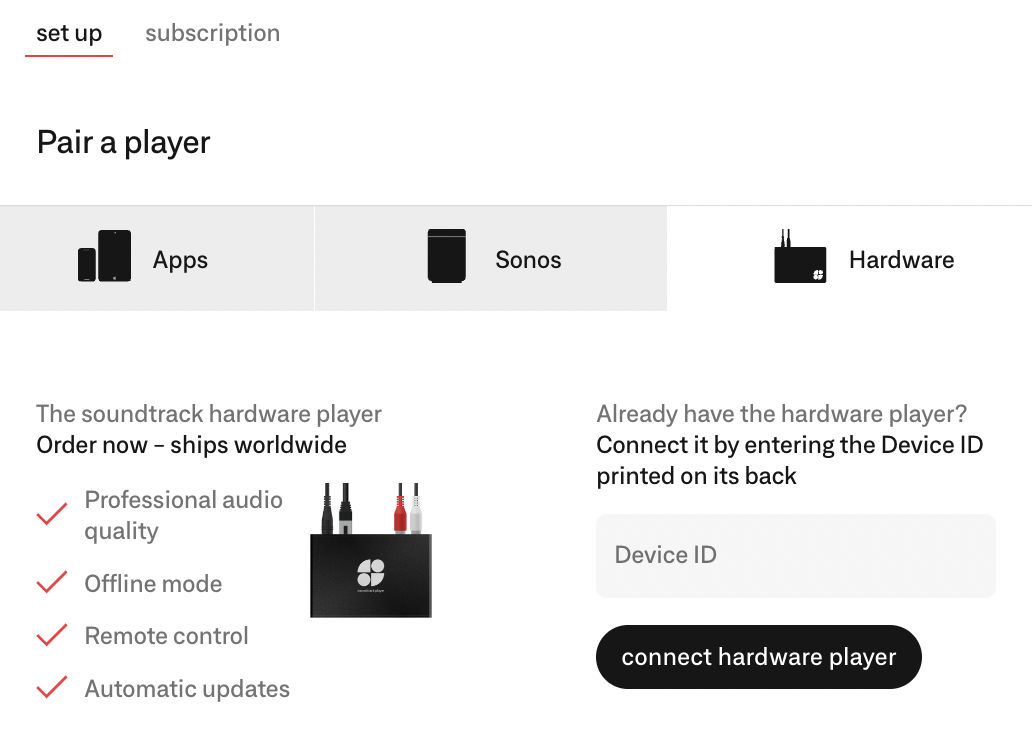

3. Click ‘Connect a player’, then ‘Hardware’.
4. Enter the device ID found on the bottom of the Player then click ‘Connect hardware player’.

5. Connect the power cable. LEDs on the front of the Player will light up.

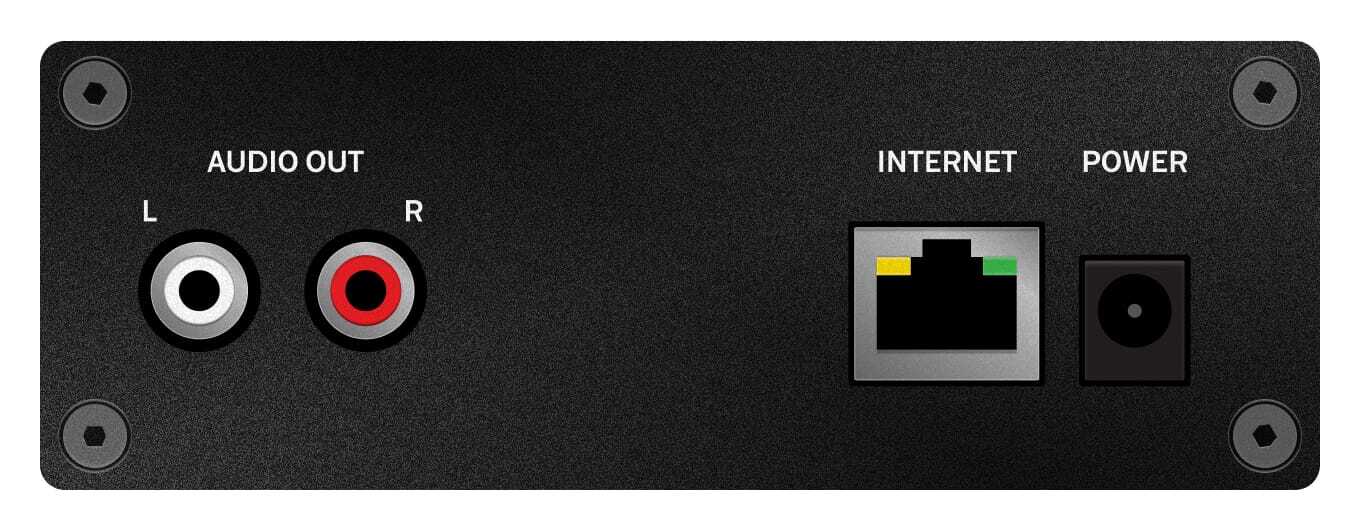

6. Connect the Ethernet cable for internet access and an audio cable (RCA or 3.5mm) to your sound system.

7. Enjoy the music! Note: it may take up to 15 minutes for music to start playing after connecting the network cable.

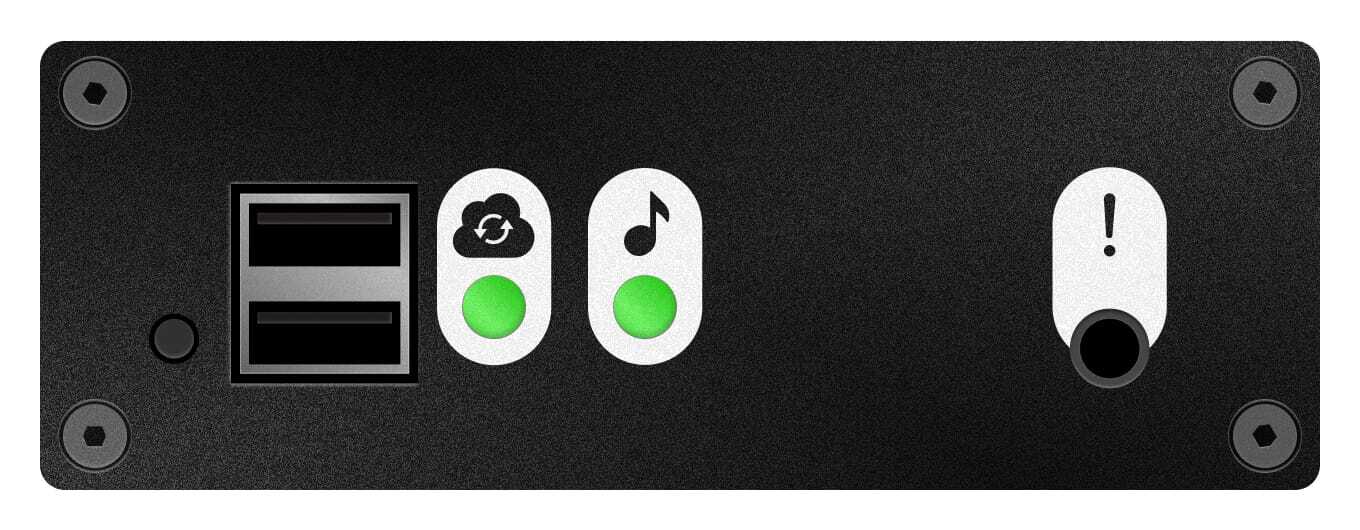

The player features two LED lights: the left for internet connection and the right for music status.



Key Features and Specifications

• 16 GB internal memory: Stores up to two weeks of music.
• RCA outputs: For analog audio connections.
• Automatic updates: Your device receives the latest software updates remotely.
• Network configuration: Uses dynamic IP by default; static IP configuration is also supported.
• Complete package: All necessary cables and an installation guide are included.
• Dimensions & weight: 108 mm (W) x 79 mm (H) x 38 mm (D) (aluminum case); 250 grams.
• 1-year warranty

Purchase a Soundtrack Player here.



How to configure the player with Static IP

1. Edit the .json file with your network information.
2. Copy the .json file to an empty USB stick. Don’t rename the file.
3. Restart the Soundtrack Player without a network cable. The LED lights should blink green, then orange, to confirm.
4. Plug the USB stick into the Soundtrack Player. The LEDs will show a green light to confirm.
5. Unplug the USB stick and restart the Soundtrack Player by removing and reinserting the power cable.
